Threaded Nipple
 |
|||||||

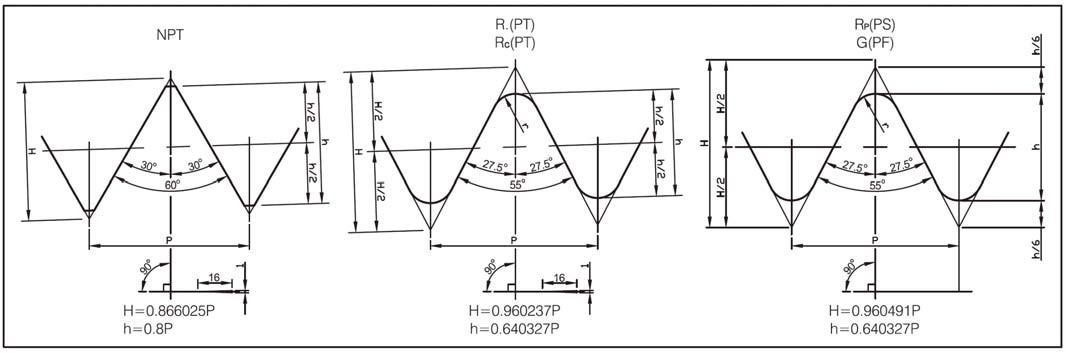

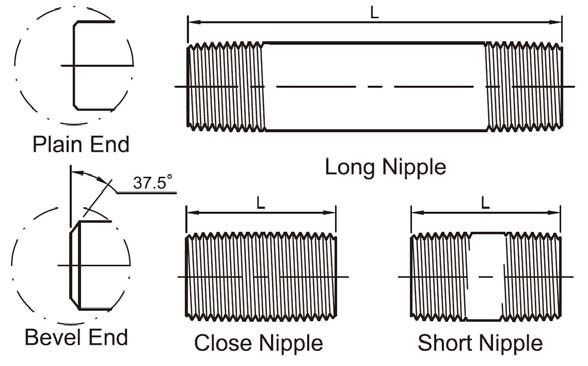

| Nom. Pipe Size | L | Plain End Weight (kg/m) | |||||
| Close Nipple | Short Nipple | Long Nipple | Sch40S | Sch80/XS | Sch160 | XXS | |
| 1/8” | 3/4” | 1-1/2” | 2”~12” | 0.37 | 0.47 | - | - |
| 1/4” | 7/8” | 1-1/2” | 2”~12” | 0.63 | 0.8 | - | - |
| 3/8” | 1” | 1-1/2” | 2”~12” | 0.84 | 1.1 | - | - |
| 1/2” | 1-1/8” | 1-1/2” | 2”~12” | 1.27 | 1.62 | 1.95 | 2.55 |
| 3/4” | 1-3/8” | 2” | 2-1/2”~12” | 1.69 | 2.2 | 2.9 | 3.64 |
| 1” | 1-1/2” | 2” | 2-1/2”~12” | 2.5 | 3.24 | 4.24 | 5.45 |
| 1-1/4” | 1-5/8” | 2-1/2” | 3”~12” | 3.39 | 4.47 | 5.61 | 7.77 |
| 1-1/2” | 1-3/4” | 2-1/2” | 3”~12” | 4.05 | 5.41 | 7.25 | 9.55 |
| 2” | 2” | 2-1/2” | 3”~12” | 5.44 | 7.48 | 11.11 | 13.44 |
| 2-1/2” | 2-1/2” | 3” | 3-1/2”~12” | 8.63 | 11.41 | 14.92 | 20.39 |
| 3” | 2-5/8” | 3” | 3-1/2”~12” | 11.29 | 15.27 | 21.35 | 27.68 |
| 3-1/2” | 2-3/4” | 4” | 4-1/2”~12” | 13.57 | 18.64 | - | - |
| 4” | 2-7/8” | 4” | 4-1/2”~12” | 16.08 | 22.32 | 33.54 | 41.03 |
| 5” | 3” | 4-1/2” | 5”~12” | 21.77 | 30.97 | 49.12 | 57.43 |
| 6” | 3-1/8” | 4-1/2” | 5”~12” | 28.26 | 42.56 | 67.57 | 79.22 |
(1) Specifications in accordance with ASTM A733-2016.
(2) Weld bevel in accordance with ASME B16.25.
 |
||||||||

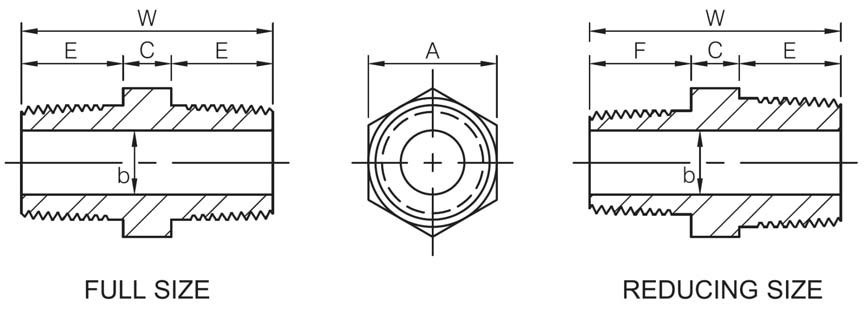

| Nominal Size | A | W | E | b | C | F | ||
| DN | Inch | (Min) | (Min) | (Min) | 3000# | 6000# | (Min) | (Min) |
| 6 | 1/8” | 11 | 26 | 10 | 5 | 2 | 6 | - |
| 8 | 1/4” | 15 | 36 | 15 | 8 | 6 | 6 | - |
| 8x6 | 1/4”x1/8” | 15 | 31 | 15 | 5 | 2 | 6 | 10 |
| 10 | 3/8” | 18 | 40 | 16 | 11 | 8 | 8 | - |
| 10x8 | 3/8”x1/4” | 18 | 39 | 16 | 8 | 6 | 8 | 15 |
| 15 | 1/2” | 22 | 48 | 20 | 14 | 11 | 8 | - |
| 15x10 | 1/2”x3/8” | 22 | 44 | 20 | 11 | 8 | 8 | 16 |
| 15x8 | 1/2”x1/4” | 22 | 43 | 20 | 8 | 6 | 8 | 15 |
| 20 | 3/4” | 27 | 52 | 21 | 19 | 13 | 10 | - |
| 20x15 | 3/4”x1/2” | 27 | 50 | 21 | 14 | 11 | 9 | 20 |
| 20x10 | 3/4”x3/8” | 27 | 46 | 21 | 11 | 8 | 9 | 16 |
| 25 | 1” | 35 | 60 | 25 | 24 | 17 | 10 | - |
| 25x20 | 1”x3/4” | 35 | 56 | 25 | 19 | 13 | 10 | 21 |
| 25x15 | 1”x1/2” | 35 | 55 | 25 | 14 | 11 | 10 | 20 |
| 40 | 1-1/2” | 50 | 68 | 26 | 38 | 30 | 16 | - |
| 40x25 | 1-1/2”x1” | 50 | 67 | 26 | 24 | 17 | 16 | 25 |
| 40x20 | 1-1/2” x ¾” | 50 | 63 | 26 | 19 | 13 | 16 | 21 |
| 40x15 | 1-1/2”x1/2” | 50 | 62 | 26 | 14 | 11 | 16 | 20 |
| 50 | 2” | 62 | 71 | 27 | 49 | 39 | 17 | - |
| 50x40 | 2”x1-1/2” | 62 | 70 | 27 | 38 | 30 | 17 | 26 |
| 50x25 | 2”x1” | 62 | 70 | 27 | 24 | 17 | 18 | 25 |
| 50x20 | 2”x3/4” | 62 | 65 | 27 | 19 | 13 | 17 | 21 |
| 50x15 | 2”x1/2” | 62 | 65 | 27 | 14 | 11 | 18 | 20 |
(1) Dimensions in accordance with BS3799-1974.
