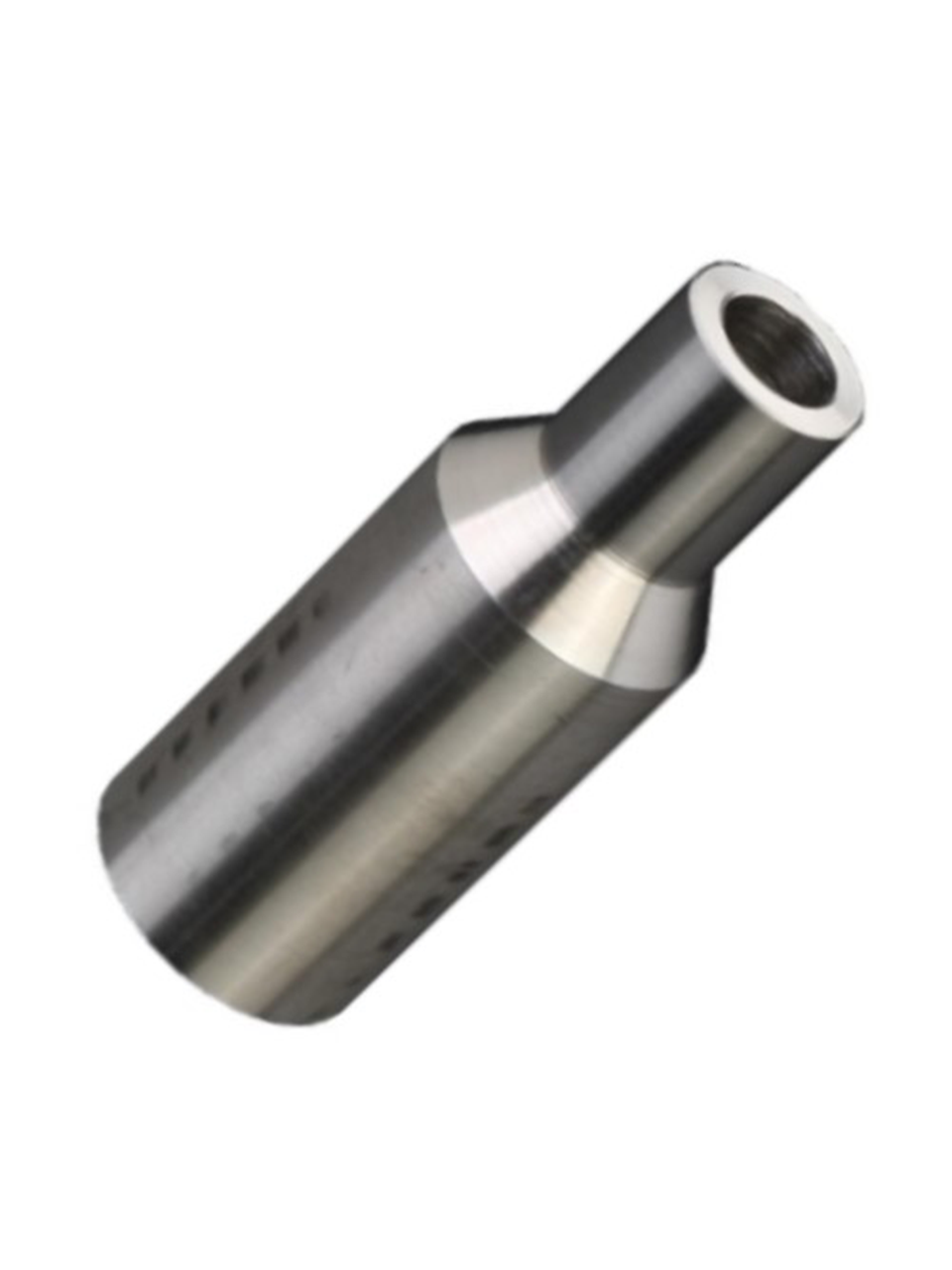

About Swage Nipple

Available Types of

Swage Nipple

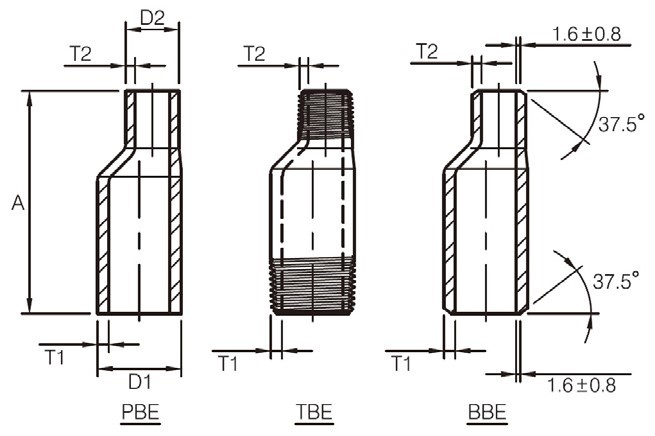

Nom. Pipe Size  Outside Diameter  Wall Thickness
Large End D1 Small End D2 T1  T2
End To End “A” Sch40 (STD) Sch80 End  Sch16 (XS)  XXS  Sch40 (STD)  Sch80 (XS)  Sch160 XXS
1/4”x1/8”  13.7 10.3 57 2.2 3 3.7 6.1 1.7 2.4 -  -
3/8”x1/8”  17.1 10.3 64 2.3 3.2 4 6.4 1.7 2.4 -  -
3/8”x1/4”  17.1 13.7 64 2.3 3.2 4 6.4 2.2 3 -  -
1/2”x1/8”  21.3 10.3 70 2.8 3.7 4.8 7.5 1.7 2.4 -  -
1/2”x1/4”  21.3 13.7 70 2.8 3.7 4.8 7.5 2.2 3 -  -
1/2”x3/8”  21.3 17.1 70 2.8 3.7 4.8 7.5 2.3 3.2 -  -
3/4”x1/8”  26.7 10.3 76 2.9 3.9 5.6 7.8 1.7 2.4 -  -
3/4’x1/4”  26.7 13.7 76 2.9 3.9 5.6 7.8 2.2 3 -  -
3/4”x3/8”  26.7 17.1 76 2.9 3.9 5.6 7.8 2.3 3.2 -  -
3/4”x1/2”  26.7 21.3 76 2.9 3.9 5.6 7.8 2.8 3.7 4.8 7.5
1”x1/8”  33.4 10.3 89 3.4 4.5 6.4 9.1 1.7 2.4 -  -
1”x1/4”  33.4 13.7 89 3.4 4.5 6.4 9.1 2.2 3 -  -
1”x3/8”  33.4 17.1 89 3.4 4.5 6.4 9.1 2.3 3.2 -  -
1”x1/2”  33.4 21.3 89 3.4 4.5 6.4 9.1 2.8 3.7 4.8 7.5
1”x3/4”  33.4 26.7 89 3.4 4.5 6.4 9.1 2.9 3.9 5.6 7.8
 1-1/4”x1/8”  42.2 10.3 102 3.6 4.9 6.4 9.7 1.7 2.4 -  -
1-1/4”x1/4”  42.2 13.7 102 3.6 4.9 6.4 9.7 2.2 3 -  -
1-1/4”x3/8”  42.2 17.1 102 3.6 4.9 6.4 9.7 2.3 3.2 -  -
1-1/4”x1/2”  42.2 21.3 102 3.6 4.9 6.4 9.7 2.8 3.7 4.8 7.5
1-1/4”x3/4”  42.2 26.7 102 3.6 4.9 6.4 9.7 2.9 3.9 5.6 7.8
1-1/4”x1”  42.2 33.4 102 3.6 4.9 6.4 9.7 3.4 4.5 6.4 9.1
1-1/2”x1/8”  48.3 10.3 114 3.7 5.1 7.1 10.2 1.7 2.4 -  -
1-1/2”x1/4”  48.3 13.7 114 3.7 5.1 7.1 10.2 2.2 3 -  -
1-1/2”x3/8”  48.3 17.1 114 3.7 5.1 7.1 10.2 2.3 3.2 -  -
1-1/2”x1/2”  48.3 21.3 114 3.7 5.1 7.1 10.2 2.8 3.7 4.8 7.5
1-1/2”x3/4”  48.3 26.7 114 3.7 5.1 7.1 10.2 2.9 3.9 5.6 7.8
1-1/2”x1”  48.3 33.4 114 3.7 5.1 7.1 10.2 3.4 4.5 6.4 9.1
1-1/2”x1-1/4”  48.3 42.2 114 3.7 5.1 7.1 10.2 3.6 4.9 6.4 9.7
2”x1/8”  60.3 10.3 165 3.9 5.5 8.7 11.1 1.7 2.4 -  -
2”x1/4”  60.3 13.7 165 3.9 5.5 8.7 11.1 2.2 3 -  -
2”x3/8”  60.3 17.1 165 3.9 5.5 8.7 11.1 2.3 3.2 -  -
2”x1/2”  60.3 21.3 165 3.9 5.5 8.7 11.1 2.8 3.7 4.8 7.5
2”x3/4”  60.3 26.7 165 3.9 5.5 8.7 11.1 2.9 3.9 5.6 7.8
Nom. Pipe Size  Outside Diameter  Wall Thickness
Large End D1 Small End D2 T1  T2
End To End “A” Sch40 (STD) Sch80 End  Sch16 (XS)  XXS  Sch40 (STD)  Sch80 (XS)  Sch160 XXS
2”x1”  60.3 33.4 165 3.9 5.5 8.7 11.1 3.4 4.5 6.4 9.1
2”x1-1/4”  60.3 42.2 165 3.9 5.5 8.7 11.1 3.6 4.9 6.4 9.7
2”x1-1/2”  60.3 48.3 165 3.9 5.5 8.7 11.1 3.7 5.1 7.1 10.2
2-1/2”x1/8”  73 10.3 178 5.2 7 9.5 14 1.7 2.4 -  -
2-1/2”x1/4”  73 13.7 178 5.2 7 9.5 14 2.2 3 -  -
2-1/2”x3/8”  73 17.1 178 5.2 7 9.5 14 2.3 3.2 -  -
2-1/2”x1/2”  73 21.3 178 5.2 7 9.5 14 2.8 3.7 4.8 7.5
2-1/2”x3/4”  73 26.7 178 5.2 7 9.5 14 2.9 3.9 5.6 7.8
2-1/2”x1”  73 33.4 178 5.2 7 9.5 14 3.4 4.5 6.4 9.1
2-1/2”x1-1/4”  73 42.2 178 5.2 7 9.5 14 3.6 4.9 6.4 9.7
2-1/2”x1-1/2”  73 48.3 178 5.2 7 9.5 14 3.7 5.1 7.1 10.2
2-1/2”x2”  73 60.3 178 5.2 7 9.5 14 3.9 5.5 8.7 11.1
3”x1/8”  88.9 10.3 203 5.5 7.6 11.1 15.2 1.7 2.4 -  -
3”x1/4”  88.9 13.7 203 5.5 7.6 11.1 15.2 2.2 3 -  -
3”x3/8”  88.9 17.1 203 5.5 7.6 11.1 15.2 2.3 3.2 -  -
3”x1/2”  88.9 21.3 203 5.5 7.6 11.1 15.2 2.8 3.7 4.8 7.5
3”x3/4”  88.9 26.7 203 5.5 7.6 11.1 15.2 2.9 3.9 5.6 7.8
3”x1”  88.9 33.4 203 5.5 7.6 11.1 15.2 3.4 4.5 6.4 9.1
3”x1-1/4”  88.9 42.2 203 5.5 7.6 11.1 15.2 3.6 4.9 6.4 9.7
3”x1-1/2”  88.9 48.3 203 5.5 7.6 11.1 15.2 3.7 5.1 7.1 10.2
3”x2”  88.9 60.3 203 5.5 7.6 11.1 15.2 3.9 5.5 8.7 11.1
3”x2-1/2”  88.9 73 203 5.5 7.6 11.1 15.2 5.2 7 9.5 14
3-1/2”x1/8”  101.6 10.3 203 5.7 8.1 -  -  1.7 2.4 -  -
3-1/2”x1/4”  101.6 13.7 203 5.7 8.1 -  -  2.2 3 -  -
3-1/2”x3/8”  101.6 17.1 203 5.7 8.1 -  -  2.3 3.2 -  -
3-1/2”x1/2”  101.6 21.3 203 5.7 8.1 -  -  2.8 3.7 4.8 7.5
3-1/2”x3/4”  101.6 26.7 203 5.7 8.1 -  -  2.9 3.9 5.6 7.8
3-1/2”x1”  101.6 33.4 203 5.7 8.1 -  -  3.4 4.5 6.4 9.1
3-1/2”x1-1/4”  101.6 42.2 203 5.7 8.1 -  -  3.6 4.9 6.4 9.7
3-1/2”x1-1/2”  101.6 48.3 203 5.7 8.1 -  -  3.7 5.1 7.1 10.2
3-1/2”x2”  101.6 60.3 203 5.7 8.1 -  -  3.9 5.5 8.7 11.1
3-1/2”x2-1/2”  101.6 73 203 5.7 8.1 -  -  5.2 7 9.5 14
3-1/2”x3”  101.6 88.9 203 5.7 8.1 -  -  5.5 7.6 11.1 15.2
Nom. Pipe Size  Outside Diameter  Wall Thickness
Large End D1 Small End D2 T1  T2
End To End “A” Sch40 (STD) Sch80 End  Sch16 (XS)  XXS  Sch40 (STD)  Sch80 (XS)  Sch160 XXS
4”x1/4”  114.3 13.7 229 6 8.6 13.5 17.1 2.2 3 -  -
4”x3/8”  114.3 17.1 229 6 8.6 13.5 17.1 2.3 3.2 -  -
4”x1/2”  114.3 21.3 229 6 8.6 13.5 17.1 2.8 3.7 4.8 7.5
4”x3/4”  114.3 26.7 229 6 8.6 13.5 17.1 2.9 3.9 5.6 7.8
4”x1”  114.3 33.4 229 6 8.6 13.5 17.1 3.4 4.5 6.4 9.1
4”x1-1/4”  114.3 42.2 229 6 8.6 13.5 17.1 3.6 4.9 6.4 9.7
4”x1-1/2”  114.3 48.3 229 6 8.6 13.5 17.1 3.7 5.1 7.1 10.2
4”x2”  114.3 60.3 229 6 8.6 13.5 17.1 3.9 5.5 8.7 11.1
4”x2-1/2”  114.3 73 229 6 8.6 13.5 17.1 5.2 7 9.5 14
4”x3”  114.3 88.9 229 6 8.6 13.5 17.1 5.5 7.6 11.1 15.2
4”x3-1/2”  114.3 101.6 229 6 8.6 13.5 17.1 5.7 8.1 -  -

(1) Dimensions in accordance with MSS SP-95-2014.

(2) Wall Thickness (T1 & T2) in accordance with ASME B36.10M.

(3) Connection end types:

  • PBE：Plain Both Ends
  • PSE：Plain Small End
  • PLE：Plain Large End
  • BBE：Bevel Both Ends
  • BSE：Bevel Small End
  • BLE：Bevel Large End
  • TBE：Thread Both Ends
  • TSE：Thread Small End
  • TLE：Thread Large End
Nom. Pipe Size  Outside Diameter  Wall Thickness
Large End D1 Small End D2 T1  T2
End To End “A” Sch40 (STD) Sch80 End  Sch16 (XS)  XXS  Sch40 (STD)  Sch80 (XS)  Sch160 XXS
1/4”x1/8”  13.7 10.3 57 2.2 3 3.7 6.1 1.7 2.4 -  -
3/8”x1/8”  17.1 10.3 64 2.3 3.2 4 6.4 1.7 2.4 -  -
3/8”x1/4”  17.1 13.7 64 2.3 3.2 4 6.4 2.2 3 -  -
1/2”x1/8”  21.3 10.3 70 2.8 3.7 4.8 7.5 1.7 2.4 -  -
1/2”x1/4”  21.3 13.7 70 2.8 3.7 4.8 7.5 2.2 3 -  -
1/2”x3/8”  21.3 17.1 70 2.8 3.7 4.8 7.5 2.3 3.2 -  -
3/4”x1/8”  26.7 10.3 76 2.9 3.9 5.6 7.8 1.7 2.4 -  -
3/4’x1/4”  26.7 13.7 76 2.9 3.9 5.6 7.8 2.2 3 -  -
3/4”x3/8”  26.7 17.1 76 2.9 3.9 5.6 7.8 2.3 3.2 -  -
3/4”x1/2”  26.7 21.3 76 2.9 3.9 5.6 7.8 2.8 3.7 4.8 7.5
1”x1/8”  33.4 10.3 89 3.4 4.5 6.4 9.1 1.7 2.4 -  -
1”x1/4”  33.4 13.7 89 3.4 4.5 6.4 9.1 2.2 3 -  -
1”x3/8”  33.4 17.1 89 3.4 4.5 6.4 9.1 2.3 3.2 -  -
1”x1/2”  33.4 21.3 89 3.4 4.5 6.4 9.1 2.8 3.7 4.8 7.5
1”x3/4”  33.4 26.7 89 3.4 4.5 6.4 9.1 2.9 3.9 5.6 7.8
 1-1/4”x1/8”  42.2 10.3 102 3.6 4.9 6.4 9.7 1.7 2.4 -  -
1-1/4”x1/4”  42.2 13.7 102 3.6 4.9 6.4 9.7 2.2 3 -  -
1-1/4”x3/8”  42.2 17.1 102 3.6 4.9 6.4 9.7 2.3 3.2 -  -
1-1/4”x1/2”  42.2 21.3 102 3.6 4.9 6.4 9.7 2.8 3.7 4.8 7.5
1-1/4”x3/4”  42.2 26.7 102 3.6 4.9 6.4 9.7 2.9 3.9 5.6 7.8
1-1/4”x1”  42.2 33.4 102 3.6 4.9 6.4 9.7 3.4 4.5 6.4 9.1
1-1/2”x1/8”  48.3 10.3 114 3.7 5.1 7.1 10.2 1.7 2.4 -  -
1-1/2”x1/4”  48.3 13.7 114 3.7 5.1 7.1 10.2 2.2 3 -  -
1-1/2”x3/8”  48.3 17.1 114 3.7 5.1 7.1 10.2 2.3 3.2 -  -
1-1/2”x1/2”  48.3 21.3 114 3.7 5.1 7.1 10.2 2.8 3.7 4.8 7.5
1-1/2”x3/4”  48.3 26.7 114 3.7 5.1 7.1 10.2 2.9 3.9 5.6 7.8
1-1/2”x1”  48.3 33.4 114 3.7 5.1 7.1 10.2 3.4 4.5 6.4 9.1
1-1/2”x1-1/4”  48.3 42.2 114 3.7 5.1 7.1 10.2 3.6 4.9 6.4 9.7
2”x1/8”  60.3 10.3 165 3.9 5.5 8.7 11.1 1.7 2.4 -  -
2”x1/4”  60.3 13.7 165 3.9 5.5 8.7 11.1 2.2 3 -  -
2”x3/8”  60.3 17.1 165 3.9 5.5 8.7 11.1 2.3 3.2 -  -
2”x1/2”  60.3 21.3 165 3.9 5.5 8.7 11.1 2.8 3.7 4.8 7.5
2”x3/4”  60.3 26.7 165 3.9 5.5 8.7 11.1 2.9 3.9 5.6 7.8
2”x1”  60.3 33.4 165 3.9 5.5 8.7 11.1 3.4 4.5 6.4 9.1
Nom. Pipe Size  Outside Diameter  Wall Thickness
Large End D1 Small End D2 T1  T2
End To End “A” Sch40 (STD) Sch80 End  Sch16 (XS)  XXS  Sch40 (STD)  Sch80 (XS)  Sch160 XXS
2”x1-1/4”  60.3 42.2 165 3.9 5.5 8.7 11.1 3.6 4.9 6.4 9.7
2”x1-1/2”  60.3 48.3 165 3.9 5.5 8.7 11.1 3.7 5.1 7.1 10.2
2-1/2”x1/8”  73 10.3 178 5.2 7 9.5 14 1.7 2.4 -  -
2-1/2”x1/4”  73 13.7 178 5.2 7 9.5 14 2.2 3 -  -
2-1/2”x3/8”  73 17.1 178 5.2 7 9.5 14 2.3 3.2 -  -
2-1/2”x1/2”  73 21.3 178 5.2 7 9.5 14 2.8 3.7 4.8 7.5
2-1/2”x3/4”  73 26.7 178 5.2 7 9.5 14 2.9 3.9 5.6 7.8
2-1/2”x1”  73 33.4 178 5.2 7 9.5 14 3.4 4.5 6.4 9.1
2-1/2”x1-1/4”  73 42.2 178 5.2 7 9.5 14 3.6 4.9 6.4 9.7
2-1/2”x1-1/2”  73 48.3 178 5.2 7 9.5 14 3.7 5.1 7.1 10.2
2-1/2”x2”  73 60.3 178 5.2 7 9.5 14 3.9 5.5 8.7 11.1
3”x1/8”  88.9 10.3 203 5.5 7.6 11.1 15.2 1.7 2.4 -  -
3”x1/4”  88.9 13.7 203 5.5 7.6 11.1 15.2 2.2 3 -  -
3”x3/8”  88.9 17.1 203 5.5 7.6 11.1 15.2 2.3 3.2 -  -
3”x1/2”  88.9 21.3 203 5.5 7.6 11.1 15.2 2.8 3.7 4.8 7.5
3”x3/4”  88.9 26.7 203 5.5 7.6 11.1 15.2 2.9 3.9 5.6 7.8
3”x1”  88.9 33.4 203 5.5 7.6 11.1 15.2 3.4 4.5 6.4 9.1
3”x1-1/4”  88.9 42.2 203 5.5 7.6 11.1 15.2 3.6 4.9 6.4 9.7
3”x1-1/2”  88.9 48.3 203 5.5 7.6 11.1 15.2 3.7 5.1 7.1 10.2
3”x2”  88.9 60.3 203 5.5 7.6 11.1 15.2 3.9 5.5 8.7 11.1
3”x2-1/2”  88.9 73 203 5.5 7.6 11.1 15.2 5.2 7 9.5 14
3-1/2”x1/8”  101.6 10.3 203 5.7 8.1 -  -  1.7 2.4 -  -
3-1/2”x1/4”  101.6 13.7 203 5.7 8.1 -  -  2.2 3 -  -
3-1/2”x3/8”  101.6 17.1 203 5.7 8.1 -  -  2.3 3.2 -  -
3-1/2”x1/2”  101.6 21.3 203 5.7 8.1 -  -  2.8 3.7 4.8 7.5
3-1/2”x3/4”  101.6 26.7 203 5.7 8.1 -  -  2.9 3.9 5.6 7.8
3-1/2”x1”  101.6 33.4 203 5.7 8.1 -  -  3.4 4.5 6.4 9.1
3-1/2”x1-1/4”  101.6 42.2 203 5.7 8.1 -  -  3.6 4.9 6.4 9.7
3-1/2”x1-1/2”  101.6 48.3 203 5.7 8.1 -  -  3.7 5.1 7.1 10.2
3-1/2”x2”  101.6 60.3 203 5.7 8.1 -  -  3.9 5.5 8.7 11.1
3-1/2”x2-1/2”  101.6 73 203 5.7 8.1 -  -  5.2 7 9.5 14
3-1/2”x3”  101.6 88.9 203 5.7 8.1 -  -  5.5 7.6 11.1 15.2
4”x1/4”  114.3 13.7 229 6 8.6 13.5 17.1 2.2 3 -  -
Nom. Pipe Size  Outside Diameter  Wall Thickness
Large End D1 Small End D2 T1  T2
End To End “A” Sch40 (STD) Sch80 End  Sch16 (XS)  XXS  Sch40 (STD)  Sch80 (XS)  Sch160 XXS
4”x3/8” 114.3 17.1 229 6.0 8.6 13.5 17.1 2.3 3.2 - -
4”x1/2” 114.3 21.3 229 6.0 8.6 13.5 17.1 2.8 3.7 4.8 7.5
4”x3/4” 114.3 26.7 229 6.0 8.6 13.5 17.1 2.9 3.9 5.6 7.8
4”x1” 114.3 33.4 229 6.0 8.6 13.5 17.1 3.4 4.5 6.4 9.1
4”x1-1/4” 114.3 42.2 229 6.0 8.6 13.5 17.1 3.6 4.9 6.4 9.7
4”x1-1/2” 114.3 48.3 229 6.0 8.6 13.5 17.1 3.7 5.1 7.1 10.2
4”x2” 114.3 60.3 229 6.0 8.6 13.5 17.1 3.9 5.5 8.7 11.1
4”x2-1/2” 114.3 73.0 229 6.0 8.6 13.5 17.1 5.2 7.0 9.5 14.0
4”x3” 114.3 88.9 229 6.0 8.6 13.5 17.1 5.5 7.6 11.1 15.2
4”x3-1/2” 114.3 101.6 229 6.0 8.6 13.5 17.1 5.7 8.1 - -

(1) Dimensions in accordance with MSS SP-95-2014.

(2) Wall Thickness (T1 & T2) in accordance with ASME B36.10M.

(3) Connection end types:

  • PBE：Plain Both Ends
  • PSE：Plain Small End
  • PLE：Plain Large End
  • BBE：Bevel Both Ends
  • BSE：Bevel Small End
  • BLE：Bevel Large End
  • TBE：Thread Both Ends
  • TSE：Thread Small End
  • TLE：Thread Large End
Material Grades
Stainless Steel ASTM A 182F GR 304,304L,304H,309,310,316,316L,316Ti,317L,321,347,904L,F60
Swage Nipple ¼” X 1/8” 4” X 3 1/2
