SMLS/ERW Product Range

CONST	ITEM	SIZE	SCH/THK	MATERIAL
SMLS/ERW	REDUCER	¾ TO 12	S10S / 40S / 80S	STAINLESS STEEL / CU-NI / DUPLEX / SUPER DUPLEX / HIGH NICKEL ALLOY

Welded Product Range

	FERROUS MATERIAL		NON-FERROUS MATERIAL
Product Type	Size Range	Schedule	Size Range	Schedule
Reducer (Concentric / Eccentric)	8" to 24"	Sch : 10,20,40,80	8" to 24"	Sch : 10,20,40,80

Dimensions of Buttweld Reducer

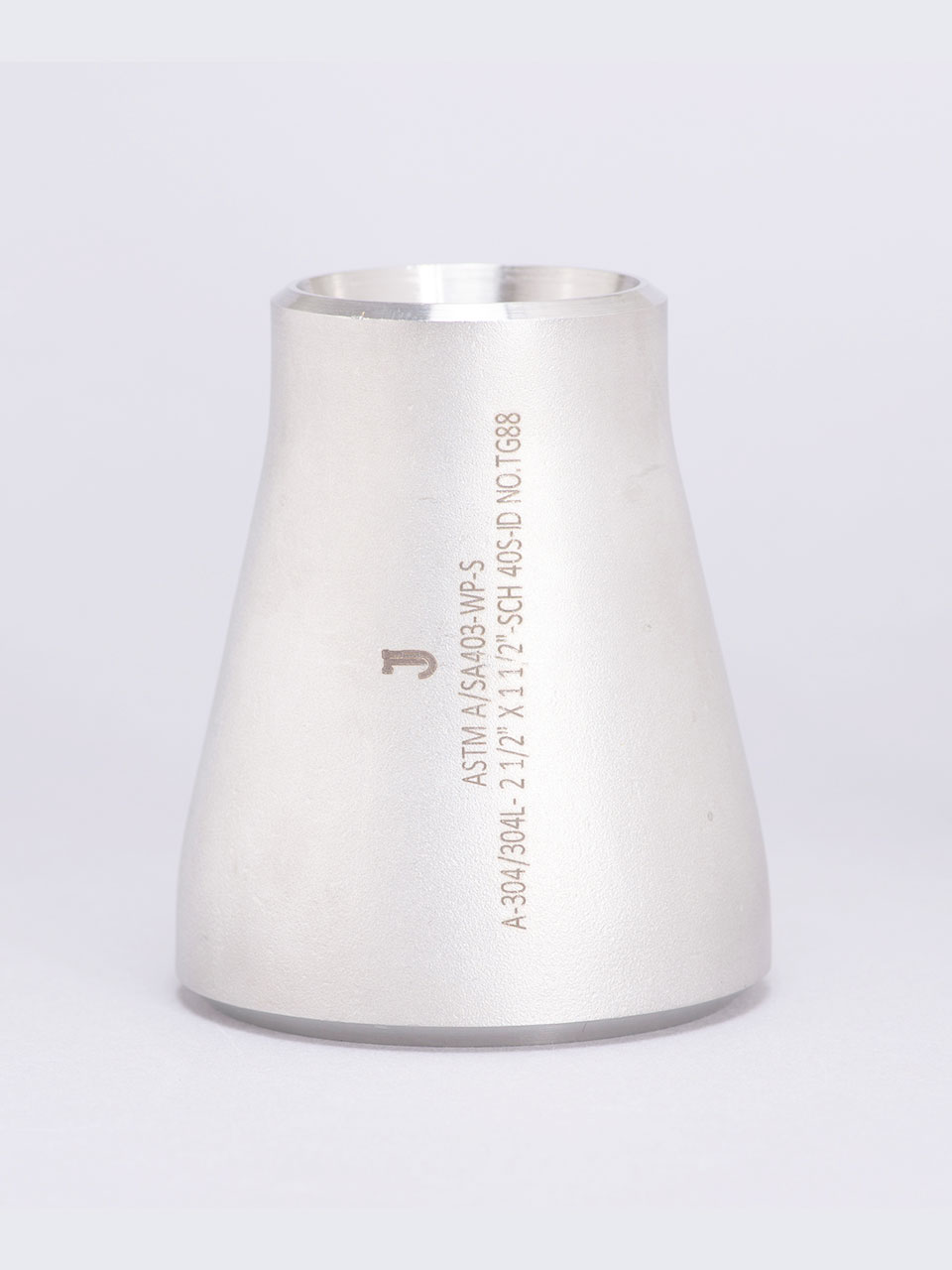

Concentric Reducer

Eccentric Reducer

(a) Plain Bevel

(b) Compound Bevel

D	d	OD		OD Tole.		ID Tole..	Schedule									Overall Length		Angularity Tolerance
NPS	NPS	D	d	(+)	(-)	(±)	5S	10	10S	40	40S/STD	80	80S/XS	160	XXS	H	Height Tole.	Off Plane	Off angle
																		P	Q
½”	3/8”	21.3	17.3	1.6	0.8	0.8	1.65	2.11	2.11	2.77	2.77	3.73	3.73	4.78	7.47	38	2	2	1
	¼”		13.7													38
¾”	½”	26.9	21.3	1.6	0.8	0.8	1.65	2.11	2.11	2.87	2.87	3.91	3.91	5.56	7.82	51	2	2	1
	3/8”		17.3													51
1”	¾”	33.4	26.9	1.6	0.8	0.8	1.65	2.77	2.77	3.38	3.38	4.55	4.55	6.35	9.09	51	2	2	1
	½”		21.3													51
1 ¼”	1”	42.6	33.4	1.6	0.8	0.8	1.65	2.77	2.77	3.56	3.56	4.85	4.85	6.35	9.7	51	2	2	1
	¾”		26.9													51
	½”		21.3													51
1 ½”	1 ¼”	48.3	42.6	1.6	0.8	0.8	1.65	2.77	2.77	3.68	3.68	5.08	5.08	7.14	10.15	64	2	2	1
	1”		33.4													64
	¾”		26.9													64
	½”		21.3													64
2”	1 ½”	60.3	48.3	1.6	0.8	0.8	1.65	2.77	2.77	3.91	3.91	5.54	5.54	8.74	11.07	76	2	2	1
	1 ¼”		42.6													76
	1”		33.4													76
	¾”		26.9													76
2 ½”	2”	73	60.3	1.6	0.8	0.8	2.11	3.05	3.05	5.16	5.16	7.01	7.01	9.35	14.02	89	2	2	1
	1 ½”		48.3													89
	1 ¼”		42.6													89
	1”		33.4													89
3”	2 ½”	88.9	73	1.6	1.6	1.6	2.11	3.05	3.05	5.49	5.49	7.62	7.62	11.13	15.24	89	2	2	1
	2”		60.3													89
	1 ½”		48.3													89
	1 ¼”		42.6													89
3 ½”	3”	101.6	88.9	1.6	1.6	1.6	2.11	3.05	3.05	5.74	5.74	8.08	8.08	---	---	102	2	2	1
	2 ½”		73													102
	2”		60.3													102
	1 ½”		48.3													102
4”	3 ½”	114.3	101.6	1.6	1.6	1.6	2.11	3.05	3.05	6.02	6.02	8.56	8.56	13.49	17.12	102	2	2	1
	3”		88.9													102
	2 ½”		73													102
	2”		60.3													102
	1 ½”		48.3													102
5”	4”	141.3	114.3	2.4	1.6	1.6	2.77	3.4	3.4	6.55	6.55	9.53	9.53	15.88	19.05	127	2	4	2
	3 ½”		101.6													127
	3”		88.9													127
	2 ½”		73													127
	2”		60.3													127
6”	5”	168.3	141.3	2.4	1.6	1.6	2.77	3.4	3.4	7.11	7.11	10.97	10.97	18.26	21.95	140	2	4	2
	4”		114.3													140
	3 ½”		101.6													140
	3”		88.9													140
	2 ½”		73													140
8”	6”	219.1	168.3	2.4	1.6	1.6	2.77	3.76	3.76	8.18	8.18	12.7	12.7	23.01	22.23	152	2	4	2
	5”		141.3													152
	4”		114.3													152
	3 ½”		101.6													152
10”	8”	273	219.1	4	3.2	3.2	3.4	4.19	4.19	9.27	9.27	15.09	12.7	28.58	25.4	178	2	5	3
	6”		168.3													178
	5”		141.3													178
	4”		114.3													178
12”	10”	323.9	273	4	3.2	3.2	3.96	4.57	4.57	10.31	9.53	17.48	12.7	33.32	25.4	203	2	5	3
	8”		219.1													203
	6”		168.3													203
	5”		141.3													203
14”	12”	355.6	323.9	4	3.2	3.2	3.96	6.35	4.78	11.13	9.53	19.05	12.7	35.71	35.71	330	2	6	3
	10”		273													330
	8”		219.1													330
	6”		168.3													330
16”	14”	406.4	355.6	4	3.2	3.2	4.19	6.35	4.78	12.7	9.53	21.44	12.7	40.49	40.49	356	2	6	3
	12”		323.9													356
	10”		273													356
	8”		219.1													356
	6”		168.3													356
18”	16”	457	406.4	4	3.2	3.2	4.19	6.35	4.78	14.27	9.53	23.88	12.7	45.24	45.24	381	2	10	4
	14”		355.6													381
	12”		323.9													381
	10”		273													381
	8”		219.1													281
20”	18”	508	457	6.4	4.8	4.8	4.78	6.35	5.54	15.09	9.53	26.19	12.7	50.01	50.01	508	2	10	4
	16”		406.4													508
	14”		355.6													508
	12”		323.9													508
	10”		273													508
	8”		219.1													508
22”	20”	559	508	6.4	4.8	4.8	4.78	6.35	5.54	---	9.53	28.58	12.7	53.98	53.97	508	2	10	4
	18”		457													508
	16”		406.4													508
	14”		355.6													508
	12”		323.9													508
	10”		273													508
24”	22”	610	559	6.4	4.8	4.8	5.54	6.35	6.35	17.48	9.53	30.96	12.7	59.54	59.54	508	2	10	4
	20”		508													508
	18”		457													508
	16”		406.4													508
	14”		355.6													508
	12”		323.9													508
	10”		273													508

Note:

1. Thickness shall not be less than 87.5% of Nominal Wall Thickness

2. All Dimensions are in MM Unless & Otherwise Specified.

Reducer Material Grades

Material	Grades
ASTM A403 WP	Gr. 304, 304L, 304H, 309, 310, 316, 316L, 316Ti, 317L, 321, 347, 347H, 904L
Super Duplex Steel	ASTM A815, ASME SA 815, UNS S32750, UNS 32760
Duplex Steel	ASTM A815, ASME SA 815 UNS S31803, UNS S32205
Nickel Alloy	ASTM / ASME SB 336 UNS 2200 (NICKEL 200), ASTM / ASME SB 363 , ASTM / ASME SB 366, UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
